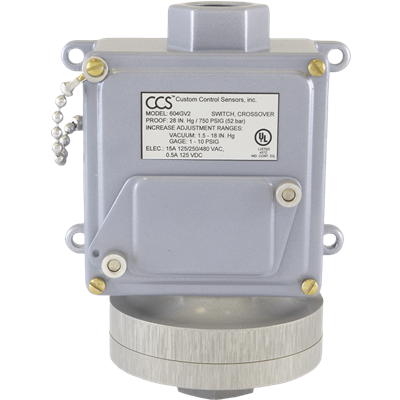

604GV Series Pressure Switch

604GV Series Pressure Switch Brand: Custom Control Sensors View Inventory Configure Request Information Favorite Email a Friend Does not ship to CA, United StatesFeaturesAdjustable Set Point Range - GAUGEIncreasingpsig   1.0 - 10kPa    6.89 - 68.9bar    0.068 - 0.68Decreasingpsig   0.5 - 9.5kPa    3.45 - 65.5bar    0.034 - 0.65Deadband - Approximate: 0.5 psi, 3.45 kPa, 0.034 bar Adjustable Set Point Range - VACUUMIncreasingInches Hg   1.5 - 18mm Hg   38 - 457DecreasingInches Hg   0.5 - 17mm Hg   3 - 493Deadband - Approximate: 1.0 Inches Hg, 25 mm Hg System Pressure - Maximum: 500 psig, 1135.54 kPa, 10.3 barProof Pressure: 750 psig, 1825.01 kPa, 17.2 barWetted MaterialsPressure Port: 1/4" NPT AluminumDiaphragm: PolyimideO-Ring: Buna NRelay: SPDT or DPDTUL, CE Mark, CRN, General Purpose  The 604GV Series Pressure Switches are highly reliable devices utilizing the CCS Dual-Snap® Belleville disc spring principle.Engineering based on aerospace technology.Rigid, midsize, and internally adjustable for convenient field set point adjustment.Repeatable and stable set points.Vibration- and shock-resistant.High cycle life.High over-pressure capability; System and Proof.Various options for wetted materials and electrical ratings to meet a wide range of application requirements and media compatibility.Suitable for ultra-low-pressure and vacuum-to-pressure applications. show more
