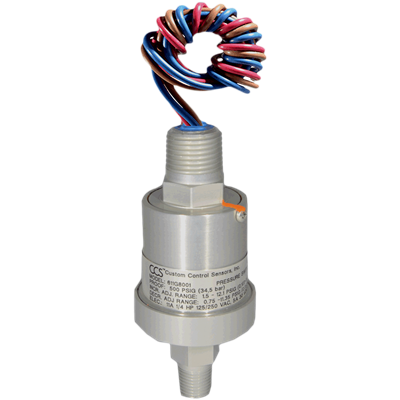

646GZE-7011 Series Pressure Switch

646GZE-7011 Series Pressure Switch Brand: Custom Control Sensors View Inventory Configure Request Information Favorite Email a Friend Does not ship to CA, United StatesThe hazardous locations 646GZE-7011 Series is a rugged, heavy duty gage pressure switch with a stainless steel port and diaphragm for corrosion resistance and wet conditions. The 646GZE-7011 Series is rated to 15 Amps and UL/CSA explosion-proof, Class I, Groups A, B, C and D, and Class II Groups E, F and G. It comes with high vibration and shock resistance utilizing Dual Snap® disc spring technology.FeaturesAdjustable Set Point RangeIncreasingpsig   1.4 - 5000kPa    9.65 - 34,473.79bar    0.09 - 344.7Decreasingpsig   0.4 - 4520kPa    2.76 - 31,164.30bar    0.03 - 311.6Deadband - Approximate: 1 - 480 psig, 6.9 - 3309.48 kPa, 0.07 - 33.1 barSystem Pressure - Maximum: 500 - 5000 psig, 3447.38 - 34,473.79 kPa, 35 - 345 barProof Pressure: 750 - 7500 psig, 5171.07 - 51,710.68 kPa, 52 - 517 barWetted MaterialsPressure Port: 1/2" Female NPT 316 Stainless SteelO-Ring: VitonRelay: SPDT or DPDTUL, CSAExplosion Proof - Class 1, Div/Zone 1, Groups A, B, C and DCE Mark, CRN, Dual Seal, NACE show more
